Brand：Pelco
Model：EVO-12NJD
EVO-12NID

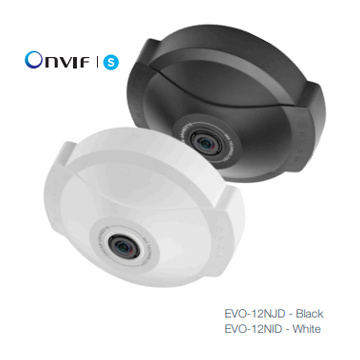

EVO-12NJD EVO-12NID 360 indoor Camera
12 MP high-resolution sensor
?Constant 360° surveillance with no blind spots
?No moving parts, no maintenance and silent operation
?High quality images in low-light conditions
?12 fps at 9.6 MP max resolution and up to 30 fps at 2.0 MP
?0.1 lux minimum illumination
?PoE or 12 VDC powered
?3-years warranty
Advanced features
?Local 3D dewarping providing 4x VCams at 1 MP max each
?Local SD card slot for event recording
?Configurable privacy regions
?Polygonal video motion detection regions
?Local alarm digital input and output
?Audio microphone input
General
Lens Field of View 180o Horizontal, 180o Vertical
Image Sensor 4072 H x 3046 V, 12.4 MP (approximately),1/2.3 in. Sony CMOS Sensor
Lens 185°/ F2.0
Minimum Illumination 0.1 lux = 50 IRE F/2.0
Frame Rate 12 fps typical at maximum resolution
Video Motion Detection 8 configurable regions
External Input 1x contact input
External Output 1x contact output
Security Configurable password protection
Advanced Event Management
Triggered by motion, external input or HTTP event, result configurable, external output, FTP/SMTP upload, Local recording
Networking TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP and RSTP
Privacy 10 configurable privacy regions
SD Card Built-in SD card slot. Supports cards up to 128 GB capacity. Speed class 10 or higher required.
Audio Connections Audio In through 3.5 mm jack, RTSP using G711 codec and ONVIF S
Analog Video Out Test port for production, not available in normal operation
White Balance Range Auto White Balance (Range = approx. 2500 K ~ 8000 K)

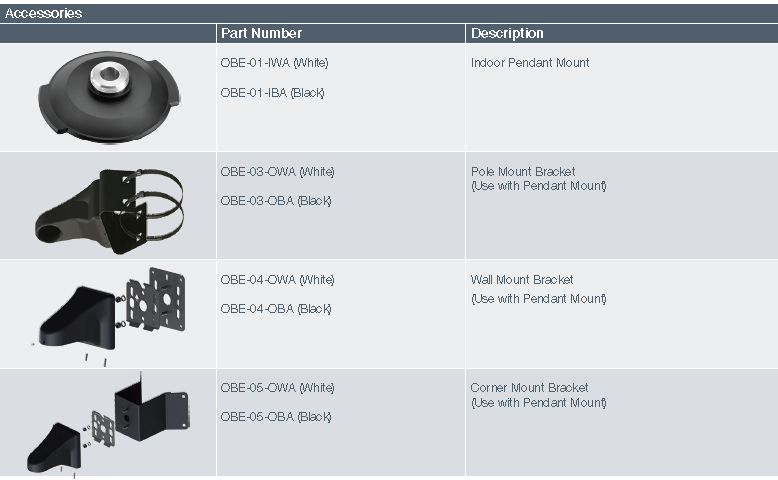

OBE-01-IWA (White)
OBE-01-IBA (Black)
Indoor Pendant Mount
OBE-03-OWA (White)
OBE-03-OBA (Black)
Pole Mount Bracket
(Use with Pendant Mount)
OBE-04-OWA (White)
OBE-04-OBA (Black)
Wall Mount Bracket
(Use with Pendant Mount)
OBE-05-OWA (White)
OBE-05-OBA (Black)
Corner Mount Bracket
(Use with Pendant Mount)
EVO-12NCD (12MP)
EVO-05NCD (5MP)
EVO-12NRD (White)
EVO-12NSD (Black)
EVO-05NRD (White)
EVO-05NSD (Black)
EVO-12NID (White)
EVO-12NJD (Black)
EVO-05NID (White)
EVO-05NJD (Black)
EVO-12NMD (White)
EVO-12NND (Black)
EVO-05NMD (White)
EVO-05NND (Black)
EVO-12-SS2-P
EVO-05LSD (Black)
EVO-05LRD (White)
EVO-05LJD (Black)
EVO-05LID (White)
EVO-05LMD (White)
EVO-05LND (Black)
