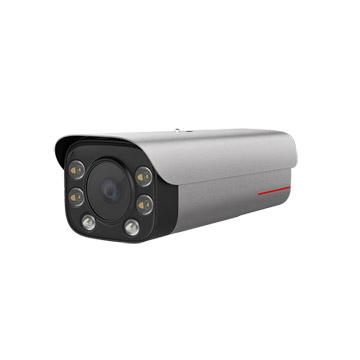

X2241-10-HLI4T 4MP Multi-Algorithm Concurrency SuperColor Bullet Camera
4 TOPS computing power
Supports multi-algorithm switchover, behavior analysis, crowd flow analysis, face and body detection, object (motor vehicle, non-motorized vehicle, and pedestrian) classification, vehicle recognition, vehicle event detection, and traffic flow statistics
Supports backlight adaptation, overcast adaptation, and speed adaptation
1/1.8" CMOS sensor
Online loading and upgrade of algorithms
Super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Supports switchover among multiple algorithms
CPU Hi3559A V100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash type SPI NAND Flash 512.0 MB
Max resolution 4-megapixel: 2560 (H) x 1440 (V)
Sensor size 1/1.8"
Min illumination Color: 0.0003 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0001 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Focal length 10–45 mm
Angle of view Horizontal: 10.7° (T) to 43° (W); vertical: 6.1° (T) to 24.6° (W)
IR range 30 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Vehicle License plate image enhancement
Traffic flow statistics Motor vehicle,Non-motorized vehicle,Pedestrian
Behavior analysis Fast movement,Tripwire crossing,Intrusion,Area entry or exit,Loitering,Climbing,Fight,Fall
Crowd flow analysis Queue length,Head counting,Crowd flow statistics
Face Face detection,Face image enhancement,Facial attribute recognition
Person Person detection,Personal attribute recognition
Non-motorized vehicle Object classification,Cyclist attributes
Audio port Supported
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 2
Ethernet port bandwidth Two RJ45 10M/100M/1000M adaptive Ethernet ports
Power type 24 V AC and PoE (IEEE 802.3at)
Power consumption Maximum: 26.1 W; typical: 8.1 W
Operating temperature –40°C to +60°C (illuminator disabled) –40°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP67
IK rating IK10
Power type 24 V AC and PoE (IEEE 802.3at)
Power consumption Maximum: 26.1 W; typical: 8.1 W
Operating temperature –40°C to +60°C (illuminator disabled) –40°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
Self-cleaning viewing window Supported
Self-cleaning viewing window specification 1. AF coating process; hardness: ≥ 6 HV 2. At least 88% transmittance@400–900 nm 3. Contact angle of the AF coating: > 110°
Surge protection 4 kV
IP rating IP67
IK rating IK10
Net weight 2.2 kg
Gross weight 2.6 kg
Device dimensions 120 mm x 280 mm x 129 mm
Package dimensions 117 mm x 296 mm x 141 mm
