Brand：Honeywell
Model：HEIPTZ-2201W-IR

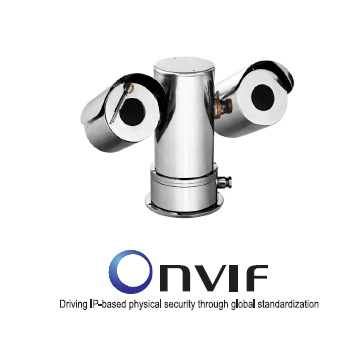

HEIPTZ-2201W-IR Honeywell 1080P HIGH DEFINITION IP EXPLOSION-PROOF PTZ CAMERA
Honeywell HEIPTZ-2201W-IR is an IP explosion-proof PTZ camera featuring
superior 1080P high definition image quality, Wide Dynamic Range
(WDR), True Day/Night (TDN), a built-in IR illuminator, and ATEX certified
construction. This advanced IP camera is designed for installation in potentially
explosive atmospheres, such as petrochemical fields, oil refineries,
LNG facilities and so forth.
The HEIPTZ-2201W-IR delivers high definition images of 1080P (1920 x
1080) resolution at up to 30 frames per second. Its 360° continuous
rotation and 20x zoom lens deliver a full picture of the area under surveillance
in optimal width and depth.
With 80-meter IR distance, the IR illuminator of the HEIPTZ-2201W-IR is
assembled for providing clear images for surveillance in dim environments
and at complete darkness. Also featuring WDR and TDN, the HEIPTZ-
2201W-IR is capable to adapt to various lighting conditions which guarantees
superior image quality any time.
By applying the H.264 video compression technology, the HEIPTZ-
2201W-IR streams high quality images at optimized bandwidth which
reduce data volume effectively to save storage space.
The 316L stainless steel construction is complied with international explosion
protected equipment standards ATEX. It also meets IP68 waterproof
standard to make the HEIPTZ-2201W-IR an ideal camera for even the most
hazardous locations. Also equipped with a built-in heater to prevent
condensation and a wiper for cleaning the viewing glass, this IP explosionproof
camera ensures clear and detailed images to be captured at all time.
Marker Opportunities
With a rigid stainless steel ATEX certified construction, the HEIPTZ-
2201W-IR explosion-proof PTZ camera delivers a high-definition 1080P
video surveillance solution for security applications used in potentially explosive
atmospheres. Also featuring 20x zoom, True Day/Night, Wide Dynamic
Range, H.264 compression and ONVIF standard, the HEIPTZ-2201W-IR
provides optimum surveillance performance in oil refineries, chemical
plants, coal mines, marine applications and so on.
FEATURES
? Stainless steel 316L construction
? ATEX II 2 GD; Exd IIC T6 Gb, Ex t IIIC T80°C Db
? Waterproof IP68 rating
? 1080P resolution at up to 30 fps
? 0.01°~30° per second variable speed in horizontal and vertical
? 360° continuous pan rotation
? -90° to +90° tilt range
? ±0.1° positioning accuracy in horizontal and vertical
? 20x optical zoom
? 80m reachable infrared illuminator
? True Day/Night with IR-cut filter; Wide Dynamic Range
? Multiple H.264 streams and MJPEG streams ensure simultaneous real-time monitoring and high resolution recording
? H.264 main profile helps save network bandwidth and storage resources
? Built-in wiper on the lens cover to remove condensed water
? Built-in heater to prevent condensation
? IP platform: Honeywell Universal Surveillance (HUS)
? ONVIF compliance
ORDERING
HEIPTZ-2201W-IR 1080P Explosion-proof PTZ Camera, IR Illuminator, IP68, TDN, WDR, ONVIF
