Brand：AXIS
Model：AXIS T8310
AXIS T8310 Video Surveillance Control Board
Modular system
Accurate control of PTZ cameras
Professional design
Durable quality
Easy to install
Modular control board for professional camera and video management.
Flexible options

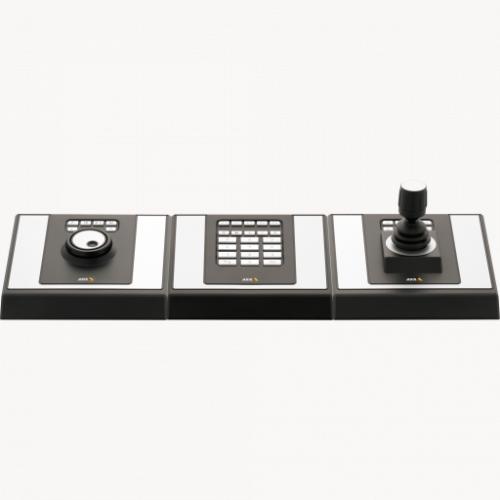

AXIS T8310 Video Surveillance Control Board is a modular system with three separate joystick, keypad and jog dial units. The modular system allows the user to choose a simple solution such as only the joystick, or a complete solution with all three modules for both camera and video management.
Quick navigation and accurate control
AXIS T8311 Video Surveillance Joystick gives responsive and accurate control of all Axis PTZ and PTZ dome network cameras. With AXIS T8312 Video Surveillance Keypad the user quickly navigates between workspaces, cameras, views and PTZ presets. AXIS T8313 Video Surveillance Jog Dial is used for navigating through recorded video.
All three units are constructed in durable materials and have a professional look and finish that adapt to a surveillance room design. The units are designed for both left hand and right hand use. AXIS T8311 Joystick is a 3-axis joystick with a turn knob and six application defined hotkeys. AXIS T8312 Keypad has ten application defined hotkeys and 12 preset keys. AXIS T8313 Jog Dial also has six application defined hotkeys as well as a navigation dial.
The units are easy to install with USB interface. When using the complete AXIS T8310 Control Board the modules are interconnected with the AXIS T8312 Keypad serving as a USB hub. AXIS T8310 Control Board is supported by AXIS Camera Station version 3.30 or higher.
Compatible products
To find a compatible product, simply use the filters below.
Network video recorders
AXIS Camera Station S1116 MT Recorder
Out-of-the-box ready recorder for high-definition surveillance
AXIS Camera Station S1116 Racked Recorder
Out-of-the-box ready recorder for high-definition surveillance
AXIS Camera Station S1132 Recorder
Out-of-the box ready server for high-definition surveillance
AXIS Camera Station S1132 Tower Recorder
Out-of-the box ready server for ultra high-definition surveillance
AXIS Camera Station S1148 Recorder
Out-of-the box ready server for high-definition surveillance
AXIS Camera Station S2208 Appliance
All-in-one recorder with integrated 8 channel PoE switch for high-definition surveillance
AXIS Camera Station S2212 Appliance
All-in-one recorder with integrated 12 channel PoE switch for high-definition surveillance
AXIS Camera Station S2216 Appliance
All-in-one recorder with integrated 16 channel PoE switch for high-definition surveillance
AXIS Camera Station S2224 Appliance
All-in-one recorder with integrated 24 channel PoE switch for high-definition surveillance
Discontinued products
The following compatible products have been discontinued.
Network video recorders
AXIS Camera Station S2008 Appliance
AXIS Camera Station S2016 Appliance
AXIS Camera Station S2024 Appliance
PTZ cameras
AXIS P5624-E Mk II PTZ Network Camera
AXIS P5624-E PTZ Network Camera
AXIS P5635-E Mk II PTZ Network Camera
AXIS P5635-E PTZ Network Camera
AXIS Q6000-E Mk II PTZ Network Camera
AXIS Q6000-E PTZ Network Camera
AXIS Q6032 PTZ Network Camera
AXIS Q6032-C PTZ Network Camera
AXIS Q6032-E PTZ Network Camera
AXIS Q6034 PTZ Network Camera
AXIS Q6034-C PTZ Network Camera
AXIS Q6034-E PTZ Network Camera
AXIS Q6035 PTZ Network Camera
AXIS Q6035-C PTZ Network Camera
AXIS Q6035-E PTZ Network Camera
AXIS Q6042 PTZ Network Camera
AXIS Q6042-C PTZ Network Camera
AXIS Q6042-E PTZ Network Camera
AXIS Q6042-S PTZ Network Camera
AXIS Q6044 PTZ Network Camera
AXIS Q6044-C PTZ Network Camera
AXIS Q6044-E PTZ Network Camera
AXIS Q6044-S PTZ Network Camera
AXIS Q6045 Mk II PTZ Network Camera
AXIS Q6045 PTZ Network Camera
AXIS Q6045-C Mk II PTZ Network Camera
AXIS Q6045-C PTZ Network Camera
AXIS Q6045-E Mk II PTZ Network Camera
AXIS Q6045-E PTZ Network Camera
AXIS Q6045-S Mk II PTZ Network Camera
AXIS Q6045-S PTZ Network Camera
AXIS Q6052 PTZ Network Camera
AXIS Q6052-E PTZ Network Camera
AXIS Q6054 Mk II PTZ Network Camera
AXIS Q6054 Mk III PTZ Network Camera
AXIS Q6054 PTZ Network Camera
AXIS Q6054-E Mk II PTZ Network Camera
AXIS Q6054-E Mk III PTZ Network Camera
AXIS Q6054-E PTZ Network Camera
AXIS Q6055 PTZ Network Camera
AXIS Q6055-C PTZ Network Camera
AXIS Q6055-E PTZ Network Camera
AXIS Q6055-S PTZ Network Camera
AXIS Q6075-S PTZ Network Camera
AXIS Q6114-E PTZ Network Camera
AXIS Q6115-E PTZ Network Camera
AXIS Q6124-E PTZ Network Camera
AXIS Q6125-LE PTZ Network Camera
AXIS Q8631-E PT Thermal Network Camera
AXIS Q8632-E PT Thermal Network Camera
AXIS Q8665-E PTZ Network Camera
AXIS Q8665-LE PTZ Network Camera
AXIS Q8721-E Dual PTZ Network Camera
AXIS Q8722-E Dual PTZ Network Camera
AXIS Q8741-E Bispectral PTZ Network Camera
AXIS Q8741-LE Bispectral PTZ Network Camera
AXIS Q8742-E Bispectral PTZ Network Camera
AXIS Q8742-LE Bispectral PTZ Network Camera
AXIS V5914 PTZ Network Camera
AXIS V5915 PTZ Network Camera
Panoramic cameras
AXIS Q6000-E Mk II PTZ Network Camera
Positioning cameras
AXIS Q8665-E PTZ Network Camera
AXIS Q8665-LE PTZ Network Camera
AXIS Q8741-E Bispectral PTZ Network Camera
AXIS Q8741-LE Bispectral PTZ Network Camera
AXIS Q8742-E Bispectral PTZ Network Camera
AXIS Q8742-LE Bispectral PTZ Network Camera
Thermal cameras
AXIS Q8631-E PT Thermal Network Camera
AXIS Q8632-E PT Thermal Network Camera
AXIS Q8721-E Dual PTZ Network Camera
AXIS Q8722-E Dual PTZ Network Camera
AXIS Q8741-E Bispectral PTZ Network Camera
AXIS Q8741-LE Bispectral PTZ Network Camera
AXIS Q8742-E Bispectral PTZ Network Camera
AXIS Q8742-LE Bispectral PTZ Network Camera
Video encoders
AXIS M7001 Video Encoder
AXIS M7014 Video Encoder
AXIS P7214 Video Encoder
AXIS Q7401 Video Encoder
AXIS Q7404 Video Encoder
AXIS Q7424-R Video Encoder
Workstations
AXIS Camera Station S9101 Desktop Terminal
AXIS Camera Station S9201 Desktop Terminal
NAME AXIS REGION PART NUMBER
AXIS T8310 Video Surveillance Control Board CN
5020-009
AXIS T8310 Video Surveillance Control Board AR, AU, BR, EU, IN, JP, UK, US
5020-001
