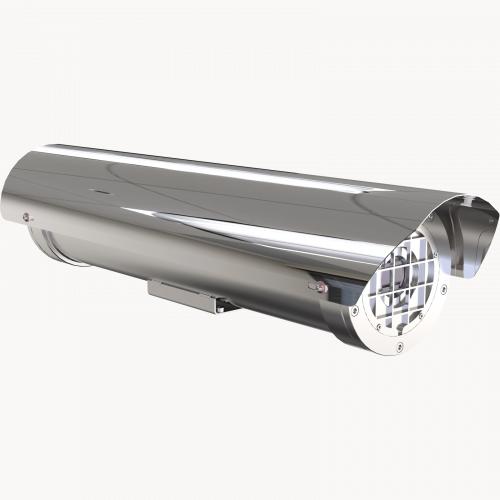

XF60-Q2901 Explosion-Protected Temperature Alarm Camera
Remote temperature monitoring for heavy-duty applications
UL-certified for hazardous areas
Detects fires and leaks
Monitors equipment and area temperature
Visual verification
Supports advanced analytics
XF60-Q2901 Explosion-Protected Temperature Alarm Camera lets you monitor temperatures, detect leaks – and take action – before it’s too late. Adding also perimeter protection possibilities together with powerful analytics. With its heavy-duty stainless-steel housing, XF60-Q2901 is certified for hazardous, explosion-prone applications.
XF60-Q2901 lets you set alarms in up to six zones in two ways: when a temperature goes beyond a limit you’ve set or when it simply increases too quickly. XF40-Q2901 also features spot temperature functionality for visual verification of the temperature of a particular area and isothermal palettes for identifying overheated equipment or areas. It can detect object temperatures between -40 °C to 550 °C (-40 °F to 1022 °F). Shock detection functionality is also included. Typical industrial applications for the fixed XF60-Q2901 Explosion-Protected Temperature Alarm Camera includes control and detection of temperatures of equipment and leaks in pipes, fire detection, and monitoring of equipment and perimeter protection. Moreover, they help visually inspecting and verifying functions and processes are running correctly, and even providing remote assistance with planned maintenance.
Like all Axis products, XF60-Q2901 supports advanced analytics solutions, from our partners, so it can be easily integrated into your production system. You can use it to monitor production efficiency as well as to visually inspect processes and verify that they’re running smoothly. The camera can also be integrated with other systems such as your access control or fire-alarm systems to provide visual verification of events.
XF60-Q2901 is UL certified for use in hazardous explosion-prone applications. Its electropolished stainless steel enclosure contains explosions and prevents sparks from igniting vapors, gases, dust, or fibers in the surrounding environment. The camera has a 110 V AC power input.
Technical specifications
Models: XF60-Q2901 19 mm 8.3 fps UL -50C 110 V
Camera
Image sensor Uncooled microbolometer
Image sensor size 336x256
Lightfinder -
Wide dynamic range –
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 720x576
Max frames per second 8.3
Electronic image stabilization –
Lens
Focal length 19 mm
Optical zoom -
Horizontal field of view 17 °
Vertical field of view - °
Compression
Zipstream –
H.264 Baseline, Main
H.265 –
Motion JPEG Yes
Network
PoE Class –
Security
Signed firmware –
Secure boot –
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot) Yes
Outdoor Ready Yes
IP rating IP66, IP67
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage 110-110 V
