Brand:AXIS
Model:D101-A XF P3807
Lens Focal length 3.2 mm
Optical zoom -
Horizontal field of view 180 °
Vertical field of view 90 °

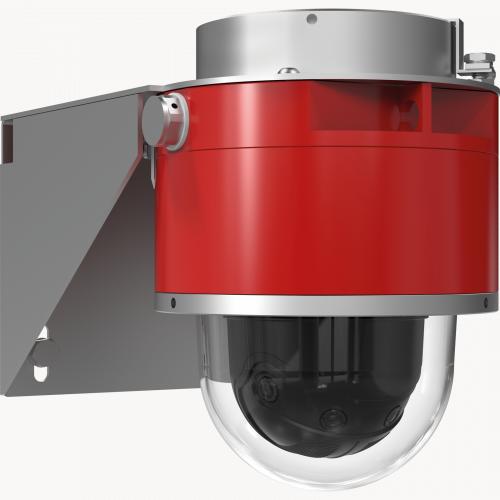

D101-A XF P3807 Explosion-Protected Network Camera
Seamless 180° coverage for hazardous areas
Certified for Class I/II/III, Division 1 and Zone 1
Seamless 180° panoramic overviews
8 MP, 180° multisensor camera
Cost-efficient installation with PoE
Forensic WDR and Lightfinder
With four sensors built into a single camera, and seamless stitching of all four images, this lightweight camera delivers 180° panoramic overviews with excellent images and no blind spots. It's ideal for surveillance in production areas where it allows the operator to monitor one, single smooth and cohesive video stream.
D101-A XF P3807 is certified to international standards to ensure safe operation in explosion prone applications. It comes enclosed in an aluminum red housing with IP66 rating. By using red, it helps the camera stands out more, especially useful in darker environments. This camera is perfect when you need to see the whole picture. It offers 180° panoramic coverage with complete 90° vertical coverage so you don't have to worry about blind spots and can be sure of capturing all the details and everything that's happening around you.
This 8-megapixel multisensor camera offers seamless 180° panoramic coverage and captures high quality forensic images up to 30 fps. It acts as a single camera in your video management software (VMS) so you can combine four images into one and apply analytics across the entire image helping save time on installation and requiring only one single license. What's more, it features Forensic WDR and Axis Lightfinder for clear, sharp images even in challenging light.
This lightweight camera can be powered by PoE with just one Ethernet cable for power and network access. And because the power source is located far from the camera, there's less likelihood of a power failure. This cost-effective camera is essentially a four-camera-in-one-unit so there's only one camera to install and manage in the video management software (VMS) where you can easily install whatever analytics you need and setup events and alarms. Plus, it offers Axis Zipstream technology for lower bandwidth and storage requirements and thanks to Axis open interfaces, it's easy to integrate with existing surveillance system.
In some situations there are defined areas of the camera view where you have no need or right to monitor, such as a neighboring property. In these situations, static privacy masking is ideal for use indoors and outdoors. D101-A XF P3807 supports not only simple opaque blocks, but also pixelation of the masked area and polygonal shapes for more flexible coverage. The masking permanently blocks a selected area from view, guaranteeing privacy where required.
Technical specifications
Models: D101-A XF P3807
Camera
Image sensor CMOS
Image sensor size 1/2.9
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.17 lux
Min illumination/ light sensitivity (B/W) 0.05 lux
Video
Max video resolution 4320x1920
Max frames per second 25/30
Electronic image stabilization –
Lens
Focal length 3.2 mm
Optical zoom -
Horizontal field of view 180 °
Vertical field of view 90 °
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Network
PoE Class 3
Security
Signed firmware Yes
Secure boot –
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot) Yes
Outdoor Ready Yes
IP rating IP66
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage –
Corner Mount D201-S XPT
For explosion-protected PTZ network cameras
Pole Mount D201-S XPT
For explosion-protected PTZ network cameras
Wall Mount D101-A XF
For explosion-protected panoramic network cameras
Wall Mount D201-S XPT
For explosion-protected D101/D201 dome cameras
D101-A XF P3807 ATEX, Class/Division, Class/Zone, IECEx, INMETRO 01914-001
