Brand:AXIS
Model:AXIS FA54

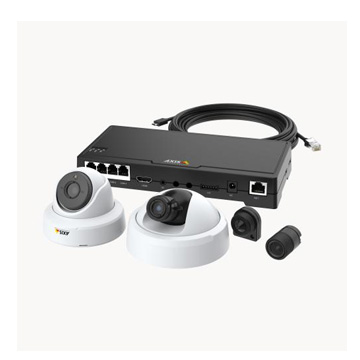

AXIS FA54 Main Unit
High-performance multi-view surveillance with Forensic WDR
Full frame rate HDTV 1080ps streams from four sensor units
Forensic WDR
Quad view stream, Axis Zipstream and Corridor Format
HDMI output, two-way audio, four configurable input/output ports
Two microSD card slots
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS FA54 Main Unit
Camera
Image sensor –
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
Thermal sensitivity (NETD) –
Thermal sensor resolution –
Video
Max video resolution 1920x1080
Max frames per second 25 / 30
Day and Night functionality –
Electronic image stabilization –
Multiple color palettes –
Lens
Focal length - mm
Varifocal lens No
Aperture -
Horizontal field of view - °
Vertical field of view - °
Lens mount –
Replaceable lens –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Two-way audio
Yes
System integration
Audio detection
Yes
Active tampering
Yes
Alarm inputs/outputs 4
Serial connectors –
AXIS Camera Application Platform
Yes
Digital I/O
Yes
Network
Power over Ethernet –
PoE Class –
Security
HTTPS encryption
Yes
IEEE 802.1X
Yes
General
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature 0 to 45 °C
Outdoor Ready –
Vandal rating –
IP rating –
Power
Power (max) 30.0 W
Power (average) 14.0 W
DC input voltage 12 V

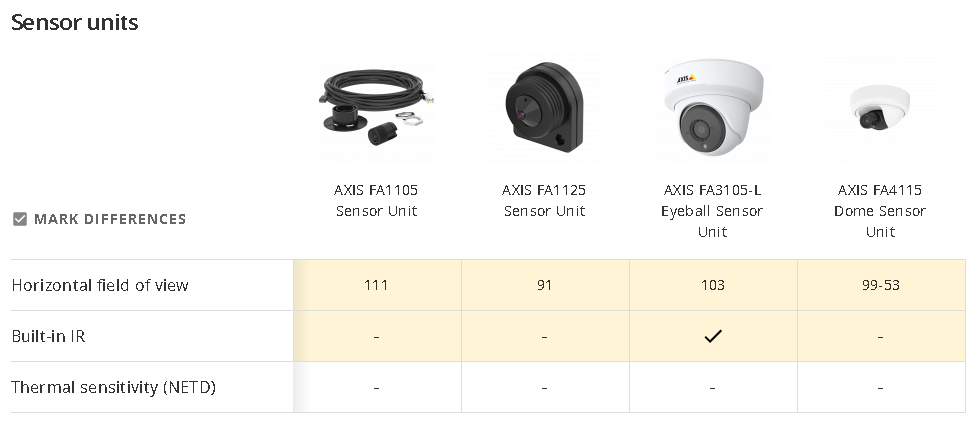

AXIS FA54 Main Unit Sensor units
AXIS FA1105 Sensor Unit
Highly discreet indoor surveillance in 1080p
AXIS FA1125 Sensor Unit
Extremely discreet indoor surveillance in 1080p
AXIS FA3105-L Eyeball Sensor Unit
Discreet indoor 1080p surveillance with IR
AXIS FA4115 Dome Sensor Unit
Flexible, discreet indoor 1080p varifocal dome
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS FA54 Main Unit AU 0878-006
AXIS FA54 Main Unit KR 0878-007
AXIS FA54 Main Unit US 0878-004
AXIS FA54 Main Unit JP 0878-005
AXIS FA54 Main Unit AR 0878-008
AXIS FA54 Main Unit CN 0878-009
AXIS FA54 Main Unit EU 0878-002
AXIS FA54 Main Unit UK 0878-003
AXIS FA54 Main Unit BR 0878-012
AXIS FA54 Main Unit IN 0878-113
