Brand:AXIS
Model:AXIS P7701

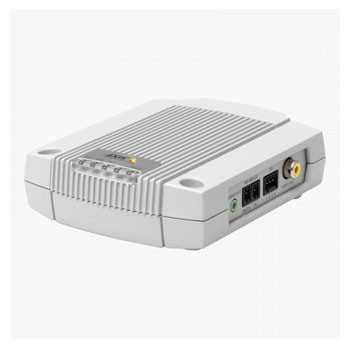

AXIS P7701 Video Decoder
Full-featured video decoder with H.264 support
Decodes H.264, MPEG-4 and Motion JPEG
Digital or analog video output
Sequence mode and auto-connect on alarm
High-quality audio
Power over Ethernet
Simple monitoring solution for Axis network video products
The AXIS P7701 Video Decoder provides a simple monitoring solution by enabling analog or digital monitors/projectors to connect to and display live video from Axis network cameras and video encoders. In situations where only live video display is required— such as with a public view monitor at a store entrance, AXIS P7701 offers a more cost-effective solution than using a PC for connecting a monitor. AXIS P7701 can also complement a video management system by helping to offload the main server from decoding digital streams simply for display purposes.
Full frame rate video decoding of H.264, MPEG-4 and Motion JPEG
AXIS P7701 can decode full frame rate video streams in H.264 and MPEG-4 in all resolutions up to D1 (720x480 pixels in NTSC, 720x576 in PAL). Motion JPEG can be decoded in all resolutions up to 720p (1280x720). The video decoder can provide either digital or analog video output. Video from any number of cameras can be shown in sequence.
Alarm-triggered video and high-quality audio
When an alarm is triggered in a network camera or video encoder, AXIS P7701 can be configured to automatically display alarm-triggered video. AXIS P7701 also decodes mono audio. The video decoder can be powered either through Power over Ethernet or through an external power supply.
AXIS P7701 bareboned from right angle
AXIS P7701 Video Decoder Barebone
Sold without a casing, the barebone version of AXIS P7701 is also available for customers who want to integrate AXIS P7701 into other devices.
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P7701 Video Decoder Barebone, 20 pcs AR, AU, BR, CN, EU, JP, KR, UK, US 0319-051
AXIS P7701 Video Decoder Barebone AR, AU, BR, EU, JP, KR, UK, US 0319-041
AXIS P7701 Video Decoder Barebone CN 0319-049
AXIS P7701 Video Decoder AR 0319-008
AXIS P7701 Video Decoder KR 0319-007
AXIS P7701 Video Decoder AU 0319-006
AXIS P7701 Video Decoder JP 0319-005
AXIS P7701 Video Decoder US 0319-004
AXIS P7701 Video Decoder BR, EU, UK 0319-002
AXIS P7701 Video Decoder CN 0319-009
