Brand:AXIS
Model:AXIS Q6100-E
Lens Focal length 2.8 mm
Horizontal field of view 360 °
Vertical field of view 84 °

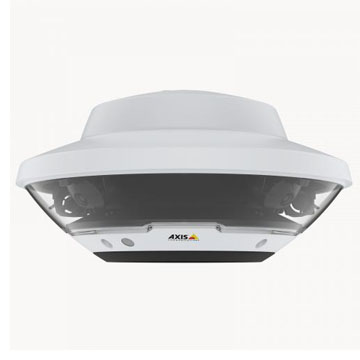

AXIS Q6100-E Network Camera
For 360° real-time monitoring and great detail
360° camera with one-click PTZ control
4 x 5 MP sensors, total 20 MP resolution
Exchangeable and tiltable lenses
Requires an AXIS Q61 PTZ Network Camera
Directional audio detection included
AXIS Q6100-E Network Camera is a multidirectional camera offering 20 MP resolution and 360° overview for total situational awareness. Designed for operation with any AXIS Q61 PTZ Network Camera, it captures high resolution overviews and details in one complete camera solution. It's ideal for city surveillance applications, for instance at street crossings or squares.
Total situational awareness- 24/7
Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6100-E is specially designed for operation with any AXIS Q61 Series camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. It includes directional audio detection which redirects the PTZ camera to the audio source whenever an audio incident is detected. Furthermore, it offers autopilot for automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q61 PTZ Network Camera will automatically track the object within the viewing area.
AXIS Q6100E - mounted on wall outdoor
Great images to cover your areas of interest
AXIS Q6100-E features four 5 MP sensors with a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
AXIS Q6100E - mounted on wall rigth
Easy, cost-efficient installation
Using the same bracket, power supply and network cable as the connected AXIS Q61 PTZ Network Camera, there's no extra equipment required for AXIS Q6100-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details in one complete camera solution.
Technical specifications
Models: AXIS Q6100-E 50 Hz / AXIS Q6100-E 60 Hz
Camera
Image sensor CMOS
Image sensor size 1/2.5
Sensor size in megapixel 20.4
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.30 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot)
Yes
Operating temperature -50 to 50 °C
Outdoor Ready
Yes
Vandal rating IK10
IP rating IP66
Designed for repaint
Yes
Analytics
Autotracking version –
Orientation aid –
Video
Max video resolution 2592x1944
Max frames per second 20
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 2.8 mm
Horizontal field of view 360 °
Vertical field of view 84 °
Pan, Tilt, Zoom
Pan range –
Tilt range –
Guard tour –
Optical zoom -
Digital zoom –
Compression
Zipstream
Yes
H.264 High, Main
H.265
Yes
Motion JPEG –
Audio
Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering –
Alarm inputs/outputs –
Network
PoE Class High PoE
Security
Signed firmware –
Secure boot –
TPM –
