Brand:Huawei
Model:NVR800-A01-4P

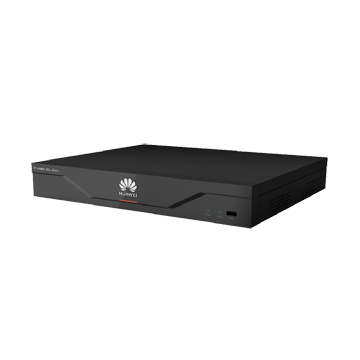

NVR800-A01-4P 8-channel 1-disk network video recorder
NVR800-A01-4P 8-channel 1-disk network video recorder
High performance and flexibility
Access to the platform and mobile app through HUAWEI CLOUD
Security and reliability
Introduction
High performance and flexibility
8-channel network video access, 80 Mbit/s video input
One HDMI port and one VGA port for simultaneous 4K HD output
Up to 8-channel simultaneous playback and reverse playback
Ease of use and maintenance
Access to the platform and mobile app through HUAWEI CLOUD
Quick device registration and access using QR codes
User-friendly UI
Security and reliability
Locks important recording files
Preview 1/4/6/8 panes
Disks 1 disk
Decoding 8MP (4K): 1-channel @ 30 fps 5MP: 2-channel @ 20 fps 4MP: 2-channel @ 30 fps 2MP (1080p): 4-channel @ 30 fps If the IVS platform is used with Huawei SDCs, when the target recognition function is enabled, the decoding performance deteriorates by 50%.
Playback/Download 8 channel, 64 Mbit/s playback
Video forwarding 64 Mbit/s forwarding
Recording mode Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms.
Behavior analysis Works with Huawei SDCs to implement intelligent capabilities, including motion detection, intrusion detection, tripwire crossing detection, audio abnormality detection, lens blocking detection, area entry/exit detection, fast movement detection, loitering detection, two-way head counting, queue length detection, head counting in an area, and mask detection.
Video input 8 channels, 80 Mbit/s access
Recording playback 8-channel simultaneous playback Simultaneous playback Controls: fast forward (2x, 4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or 1/2x)
Video input 8 channels, 80 Mbit/s access
Video forwarding 64 Mbit/s forwarding
Playback/Download 8 channel, 64 Mbit/s playback
HDMI One HDMI 1.4 Resolutions: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160
VGA One VGA port Resolutions: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080
Decoding 8MP (4K): 1-channel @ 30 fps 5MP: 2-channel @ 20 fps 4MP: 2-channel @ 30 fps 2MP (1080p): 4-channel @ 30 fps If the IVS platform is used with Huawei SDCs, when the target recognition function is enabled, the decoding performance deteriorates by 50%.
Preview 1/4/6/8 panes
Memory 4 GB (DDR3)
Processor 32-bit multi-core high-performance processor
Disks 1 disk
Disk port SATA 3.0
Disk type 8 TB per port
Recording mode Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms.
Recording playback 8-channel simultaneous playback Simultaneous playback Controls: fast forward (2x, 4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or 1/2x)
Search mode By time, recording type, or AI event
Download mode Batch download and segment-based download
Network protocol TCP (reliable transmission), UDP (transmission protocol), RTP (data protocol), RTSP (real-time transmission protocol), HTTP (hypertext transmission), DNS (domain name resolution service), SNMP (simple network management), NTP (network time calibration), SMTP (email service), and DHCP (automatic IP address obtaining)
Web access Compatible with Internet Explorer 9, 10, and 11
P2P HUAWEI CLOUD service Access to HUAWEI CLOUD services and remote access through mobile apps
Device access Huawei SDK and ONVIF
Audio format G.711a\G.711u
Video format H.264\H.265
Behavior analysis Works with Huawei SDCs to implement intelligent capabilities, including motion detection, intrusion detection, tripwire crossing detection, audio abnormality detection, lens blocking detection, area entry/exit detection, fast movement detection, loitering detection, two-way head counting, queue length detection, head counting in an area, and mask detection.
Target reference libraries 16
Total target library capacity 10,000
Structured data storage Structured vehicle data storage
Log download Operation logs, system logs, alarm logs, parameter setting logs, recording logs, SDC SDK logs, and public cloud logs; support for intelligent log check and log storage
Management mode Web and LDU
Audio output 1 channel, RCA port
USB port 2 x USB 2.0 port (1 port on the front panel and 1 port on the rear panel)
Network port 1 x 100/1000 Mbit/s Ethernet port 4 x PoE ports (10/100 Mbit/s Ethernet port)
PoE 4 x 10/100 Mbit/s Ethernet ports
Standard IEEE802.3af/at
Output power ≤ 40 W
Operating temperature 0°C to 45°C
Operating humidity 20% to 90%
Power consumption (without hard disk) ≤ 5 W
Weight (without hard disk) 1 kg
Chassis 1 U
Dimensions 54 mm x 378 mm x 227 mm (H x W x D)
Power supply 48 V/1.5 A
Outside China RoHS and WEEE
China CCC, CQC, and Identification and Classification Report for Air Transport of Goods
