Brand:Huawei
Model:NVR800-B08

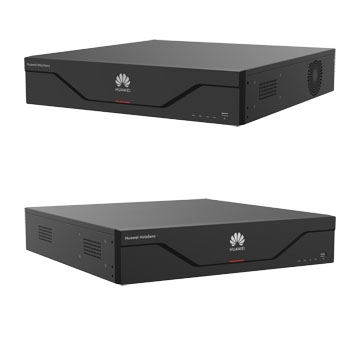

NVR800-B08 32-channel 8-disk network video recorderNVR800-B08 32-channel 8-disk network video recorder
High performance and flexibility
Ease of use and maintenance
Security and reliability
Introduction
High performance and flexibility
32-channel network video access, 320 Mbit/s video input
One HDMI port and one VGA port for simultaneous 4K HD output
Up to 16-channel simultaneous playback and reverse playback
Ease of use and maintenance
Access to the platform and mobile app through HUAWEI CLOUD
Quick device registration and access using QR codes
User-friendly UI
Security and reliability
Locks important recording files
Preview 1/4/6/8/9/10/12/13/14/16/17/19/20/22/25/32/36/64 panes
Disks 8 disk trays
Decoding 8MP (4K): 4-channel @ 30 fps 5MP: 9-channel @ 20 fps 4MP: 8-channel 30 fps 2MP (1080p): 16-channel @ 30 fps 720p: 32-channel @ 30 fps
Playback/Download 128 Mbit/s playback bandwidth
Video forwarding 320 Mbit/s forwarding bandwidth
Recording mode Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms
Behavior analysis Works with Huawei SDCs to implement intelligent capabilities, including motion detection, intrusion detection, tripwire crossing detection, audio abnormality detection, lens blocking detection, area entry/exit detection, fast movement detection, loitering detection, two-way head counting, queue length detection, head counting in an area, and mask detection.
Video input 32 channels, 320 Mbit/s access bandwidth
Recording playback 16-channel simultaneous playback Playback and playback frame by frame; controls: fast forward (2x, 4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or 1/2x)
Video input 32 channels, 320 Mbit/s access bandwidth
Video forwarding 320 Mbit/s forwarding bandwidth
Playback/Download 128 Mbit/s playback bandwidth
HDMI One HDMI 1.4 port; resolutions: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160
VGA One VGA port; resolutions: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, and 1920 x 1080 pixels
Decoding 8MP (4K): 4-channel @ 30 fps 5MP: 9-channel @ 20 fps 4MP: 8-channel 30 fps 2MP (1080p): 16-channel @ 30 fps 720p: 32-channel @ 30 fps
Preview 1/4/6/8/9/10/12/13/14/16/17/19/20/22/25/32/36/64 panes
Memory 16 GB (DDR3)
Processor 32-bit multi-core high-performance processor
Disks 8 disk trays
Disk port SATA 3.0
Disk type 8 TB per port
Recording mode Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms
Recording playback 16-channel simultaneous playback Playback and playback frame by frame; controls: fast forward (2x, 4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or 1/2x)
Search mode By time, recording type, or AI event
Download mode In batches or by segment
Network protocol TCP (reliable transmission), UDP (transmission protocol), RTP (data protocol), RTSP (real-time transmission protocol), HTTP (hypertext transmission), DNS (domain name resolution service), SNMP (simple network management), NTP (network time calibration), SMTP (email service), and DHCP (automatic IP address obtaining)
Web access Compatible with Internet Explorer 9, 10, and 11
P2P HUAWEI CLOUD service Access to HUAWEI CLOUD services and remote access through the mobile app
Device access HWSDK and ONVIF
Audio format G.711a/G.711u
Video format H.264/H.265
Behavior analysis Works with Huawei SDCs to implement intelligent capabilities, including motion detection, intrusion detection, tripwire crossing detection, audio abnormality detection, lens blocking detection, area entry/exit detection, fast movement detection, loitering detection, two-way head counting, queue length detection, head counting in an area, and mask detection.
Target reference libraries 16
Total target library capacity 50,000
Structured data storage Structured vehicle data storage
Log download Operation logs, system logs, alarm logs, parameter setting logs, recording logs, SDC SDK logs, and public cloud logs; support for intelligent log check and log storage
Management mode Web and LDU
Alarm port 16 alarm-in channels, 4 alarm-out channels
Audio output 1 channel, RCA port
Audio input 1 channel, RCA port
Serial port 1 x half-duplex RS-485 port
USB port 3 x USB ports (1 front USB 2.0 port, 1 rear USB 2.0 port, and 1 rear USB 3.0 port)
Network port 2 x 100/1000 Mbit/s Ethernet ports
Operating temperature –5°C to +55°C
Operating humidity 20%–90%
Power consumption (without hard disk) ≤ 25 W
Weight (without hard disk) 6.59 kg
Chassis 2 U
Dimensions H x W x D: 89 mm x 440 mm x 460 mm
Power supply Input voltage: 200–240 V AC, 50–60 Hz
Outside China RoHS and WEEE
China Type inspection report, GB/T 28181, CCC, CQC, and Identification and Classification Report for Air Transport of Goods
