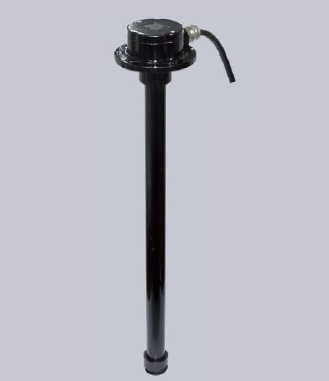

GPS Fuel Sensor CLS2
Model Number:CLS2-700
length: 700mm/can be customized
Supply voltage: 10-32V or 5V
Output signal: 0-5V,RS232,RS485,can be customized
Protection rank:IP65
Operational Temperature:- 40 ~ +85°C
GPS High Resolution Capacitance Level Fuel Sensors CLS2
The Capacitance Level Sensor (CLS), is used to continuously detect fuel level by measuring the capacitance variations as the level changes, it combines advantages of strong stability and long service life.
● Sensor length range is 300mm~1500mm and can be customized.
● Installation：SAE standard 5 holes flange, other installation methods are available.
Application
Taxi fleet management
Vehicle Fuel Consumption and Usage Monitoring
Fuel Tank Truck Monitoring
Fuel Storage Tank Remote Monitoring
Fixed Asset/Generator Set Diesel Tank Remote Monitoring
Product Features
Used for diesel, gasoline level measuring
Length: 200-1500mm, length could be trimmed and re-calibrated in the field, fits different tank sizes,minimizing customer inventory level
High resolution: 1mm
Output signal: voltage or RS232 or RS485, can be customized
Installation: SAE standard 5 holes flange, other installation methods are available
