Brand：AXIS
Model：XP40-Q1942 01104-001
Lens Focal length 19mm

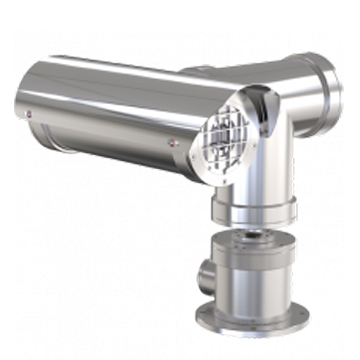

XP40-Q1942 01104-001 Explosion-Protected Thermal Network Camera
Outstanding detection and verification for heavy-duty applications
Continuous 360° pan, ±90° tilt
VGA 640x480
Electronic image stabilization
Certified for hazardous applications
Supports advanced analytics
XP40-Q1942 Explosion-Protected PT Thermal Network Camera helps you monitor employee safety and detect the unauthorized individuals in hazardous areas. With its heavy-duty stainless-steel housing, XF40-Q1942 is certified for explosion-prone applications.
hand touching a fence
Far + wide + sharp = accurate
XP40-Q1942 provides outstanding detection capabilities and fast and easy visual verification of the nature of detected events in order to enhance safety in restricted areas. A combination of 360° pan and 90° tilt capabilities and VGA 640x480 thermal resolution means that a single camera can capture events taking place in a large area and at great distance. In addition, thanks to a combination of dynamic histogram equalization, enhanced local contrast and dynamic sharpening, XP40-Q1942 improves image contrast for sharp video with great detail in all conditions. Typical applications include detection of people in restricted areas and safety of personnel in hazardous areas. Electronic image stabilization keeps the picture smooth even when the camera is exposed to vibrations. And shock-detection functionality is included as well.
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: XP40-Q1942 19 mm 8.3 fps EAC -60C / XP40-Q1942 19 mm 8.3 fps INMETRO -60C / XP40-Q1942 19 mm 8.3 fps IA -60C / XP40-Q1942 19 mm 8.3 fps CCOE -60C / XP40-Q1942 19 mm 8.3 fps CSA -60C / XP40-Q1942 19 mm 8.3 fps ATEX IECEx -60C / XP40-Q1942 19 mm 8.3 fps CNEX -60C / XP40-Q1942 19 mm 8.3 fps ATEX IECEx / XP40-Q1942 19 mm 8.3 fps CCOE / XP40-Q1942 19 mm 8.3 fps IA / XP40-Q1942 19 mm 8.3 fps CNEX / XP40-Q1942 19 mm 8.3 fps CSA / XP40-Q1942 19 mm 8.3 fps INMETRO / XP40-Q1942 19 mm 8.3 fps EAC / XP40-Q1942 19 mm 8.3 fps UL -50C 110 V / XP40-Q1942 19 mm 8.3 fps UL -50C
Camera
Image sensor Uncooled microbolometer
Image sensor size 640x480
Sensor size in megapixel 0.0
Lightfinder -
Wide dynamic range –
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 800x600
Max frames per second 8.3
Electronic image stabilization
Yes
Lens
Focal length 19 mm
Optical zoom -
Horizontal field of view 32 °
Vertical field of view - °
Compression
Zipstream
Yes
H.264 Baseline, Main
H.265 –
Motion JPEG
Yes
Network
PoE Class –
Security
Signed firmware –
Secure boot –
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot)
Yes
Outdoor Ready
Yes
IP rating IP66, IP67
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage 20-28 V
