Model:AXIS P5654-E Mk II
Lens:Focal length 4.0 - 84.6 mm
Horizontal field of view 77.0-3.6 °
Vertical field of view 43.1-2.0 °

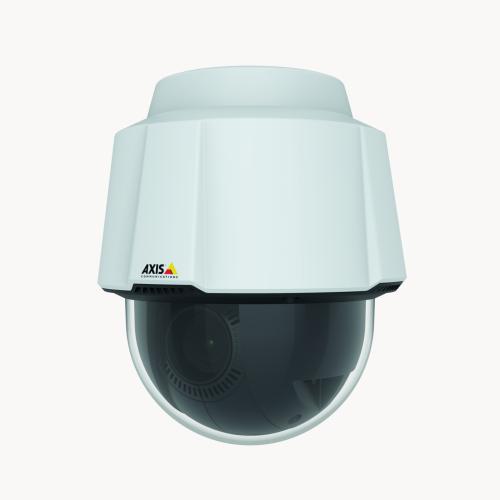

AXIS P5654-E Mk II PTZ Camera
Wide angle PTZ with HDTV 1080p and 21x zoom
HDTV 1080p with 21x optical zoom
Wide 77° field of view
Lightfinder 2.0 and Forensic WDR
Support for advanced analytics
Axis Edge Vault safeguards the device
This cost-effective PTZ camera offers great image quality in HDTV 1080p and wide area coverage with 77° field of view. Plus, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Great images – anytime
AXIS P5654-E MK II delivers great image quality in HDTV 1080p with 21x optical zoom. It offers wide area coverage with a 77° field of view. So, you’ll benefit from a sharp overview and great detail even in mixed and low light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. And electronic image stabilization (EIS) ensures stable images despite vibration. Including four scene profiles with different image settings, it’s optimized to suit specific scenarios. Furthermore, focus recall gives you instant focus even in challenging light conditions.
Keeping you secure
Built on the ARTPEC 7 system-on-chip, this PTZ camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. For instance, signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
And there’s more…
This versatile camera offers support for advanced analytics. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Featuring shock detection, the camera will send an alarm when it has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Axis Zipstream technology with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, with IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can also handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).
Technical specifications
Models: AXIS P5654-E Mk II 60HZ / AXIS P5654-E Mk II 50HZ
Camera
Property description Property value
Lightfinder Lightfinder 2.0
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Image sensor CMOS
Image sensor size 1/2.8
Wide dynamic range Forensic WDR
General
Property description Property value
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Analytics
Property description Property value
Autotracking version Autotracking 2
Orientation aid –
Video
Property description Property value
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Property description Property value
Focal length 4.0 - 84.6 mm
Horizontal field of view 77.0-3.6 °
Vertical field of view 43.1-2.0 °
Pan, Tilt, Zoom
Property description Property value
Optical zoom 21
Pan range 360 endless
Tilt range +/- 90
Guard tour limited guard tour
Digital zoom 12
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support –
Built-in microphone –
System Integration
Property description Property value
Audio detection –
Active tampering –
Alarm inputs/outputs –
Network
Property description Property value
PoE Class 4
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
TPM –
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
AI-based object detection and classification
AXIS Video Motion Detection
Supported
AXIS Speed Monitor
Visualize radar data and get actionable insights
Cables & connectors
AXIS Long Range PoE Extender Kit
Robust solution for covering long distances
Recommended for this product
AXIS T8129 PoE Extender
The smart solution for covering distances
Recommended for this product
AXIS T8129-E Outdoor PoE Extender
Robust, outdoor-ready solution for covering distances
Recommended for this product
Outdoor RJ45 cable
Compatible with selected Axis PTZ cameras
Recommended for this product
Edge storage
AXIS Surveillance Card 1 TB
High endurance microSDXC? card
Recommended for this product
AXIS Surveillance Card 128 GB
High endurance microSDXC? card
Recommended for this product
AXIS Surveillance Card 256 GB
High endurance micro SDXC? card
Recommended for this product
AXIS Surveillance Card 512 GB
High endurance microSDXC? card
Recommended for this product
AXIS Surveillance Card 64 GB
High endurance microSDXC? card
Recommended for this product
Housings & cabinets
AXIS P56 Skin Cover D
Repaintable skin cover
Recommended for this product
AXIS T98A18-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
Requires additional accessory
Recommended for this product
AXIS T98A18-VE Surveillance Cabinet
Robust cabinets for easy installation of critical system equipment
Requires additional accessory
Recommended for this product
Illuminators
AXIS T90D20 IR-LED
High-performance infrared LED illuminator with ease of installation
Recommended for this product
AXIS T90D20 PoE IR-LED
High-performance infrared LED illuminator with ease of installation
Recommended for this product
AXIS T90D25 PoE W-LED
High-performance white LED illuminator with ease of installation
Recommended for this product
AXIS T90D25 W-LED
High-performance white LED illuminator with ease of installation
Recommended for this product
AXIS T90D30 IR-LED
High-performance infrared LED illuminator with ease of installation
Recommended for this product
AXIS T90D30 PoE IR-LED
High-performance infrared LED illuminator with ease of installation
Recommended for this product
AXIS T90D35 PoE W-LED
High-performance White LED illuminator with ease of installation
Recommended for this product
AXIS T90D35 W-LED
High-performance white LED illuminator with ease of installation
Recommended for this product
AXIS T90D40 IR-LED
High-performance infrared LED illuminator with ease of installation
Recommended for this product
Media converters
AXIS T8604 Media Converter Switch
Converts Ethernet to fiber 12 V DC
Recommended for this product
AXIS T8606 Media Converter Switch 24 V DC
Converts Ethernet to fiber 24 V DC
Recommended for this product
AXIS T98A18-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
Requires additional accessory
Recommended for this product
Mounts
AXIS T91A64 Corner Bracket
Mounting on external corners
Requires additional accessory
Recommended for this product
AXIS T91B50 Telescopic Ceiling Mount
Telescopic ceiling mount with swivel action
Requires additional accessory
Recommended for this product
AXIS T91B51 Ceiling Mount
Ceiling mount with swivel action for low-ceilinged environments
Requires additional accessory
Recommended for this product
AXIS T91B57 Pole Mount
For sturdy installations on poles
Requires additional accessory
Recommended for this product
AXIS T91B63 Ceiling Mount
Robust and safe installation
Recommended for this product
AXIS T91D62 Telescopic Parapet Mount
Parapet installation with telescopic flexibility
Requires additional accessory
Recommended for this product
AXIS T91G61 Wall Mount
Quick connection and room for more
Recommended for this product
AXIS T91L61 Wall-and-Pole Mount
For quick wall and pole installations
Recommended for this product
AXIS T94A01D Pendant Kit
Mounting on 1.5″ NPS threaded bracket
Recommended for this product
AXIS T94A02L Recessed Mount
Mount for roof overhangs and soffits
Recommended for this product
AXIS TQ6501-E Parapet Mount
Parapet mount with conduit side entry
Requires additional accessory
Recommended for this product
Power
AXIS 30 W Midspan
For indoor use, 240 V AC
Recommended for this product
AXIS T8061 Ethernet Surge Protector
Protects outdoor devices from power surges
Recommended for this product
AXIS TU8001 Ethernet Surge Protector
For use indoors or in an enclosure
Recommended for this product
Switches
AXIS T8504-E Outdoor PoE Switch
Managed, plug-and play outdoor switch
Recommended for this product
AXIS T8508 PoE+ Network Switch
8 port switch for efficient network management
Recommended for this product
AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management
Recommended for this product
AXIS T8524 PoE+ Network Switch
24 port switch for efficient network management
Recommended for this product
Tools & extras
AXIS Bird Control Spike
Keep your outdoor network cameras clean
Recommended for this product
AXIS Safety Wire 3 m
Versatile safety wire
Recommended for this product
AXIS T8415 Wireless Installation Tool
Simplicity in your hand
Recommended for this product
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P5654-E Mk II 60HZ US, KR, JP, BR 02915-001
AXIS P5654-E Mk II 50HZ UK, IN, EU, CN, AU, AR 02914-001
