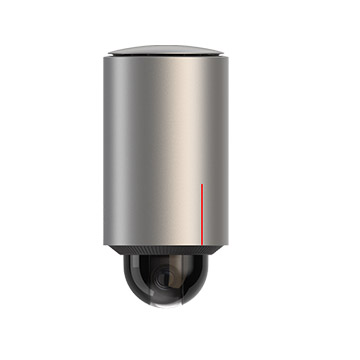

X7341-10-HMI 4T 4MP AI Fixed Dome Eco-Cube Camera
4 TOPS computing power
Supports heat map, 1 + N, multi-algorithm switchover, behavior analysis, crowd flow analysis, face and body detection, object (motor vehicle, non-motorized vehicle, and pedestrian) classification, vehicle recognition, vehicle event detection, and traffic flow statistics
Supports backlight adaptation, overcast adaptation, and speed adaptation
1/1.8" CMOS sensor
Online loading and upgrade of algorithms
Super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Supports switchover among multiple algorithms
CPU Hi3559A V100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash type SPI NAND Flash 512.0 MB
Max resolution 4-megapixel: 2560 (H) x 1440 (V)
Sensor size 1/1.8"
Min illumination Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0025 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Focal length 8–32 mm
Angle of view Horizontal: 15° (T) to 42° (W); vertical: 8.4° (T) to 22.8° (W)
IR range 80 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map Supported
1 + N Supported
Vehicle License plate image enhancement
Traffic flow statistics Motor vehicle,Non-motorized vehicle,Pedestrian
Behavior analysis Fast movement,Tripwire crossing,Intrusion,Area entry or exit,Loitering
Crowd flow analysis Queue length,Head counting,Crowd flow statistics
Face Face detection,Face image enhancement,Facial attribute recognition,Facial recognition
Person Person detection,Personal attribute recognition
Non-motorized vehicle Object classification,Cyclist attributes
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M/1000M Ethernet port
Power type 24 AC and PoE (IEEE 802.3at)
Power consumption Maximum: 19.7 W; typical: 7.2 W
Operating temperature –40°C to +60°C
Operating humidity 5% to 95% (non-condensing)
IP rating IP66
IK rating IK10 (except for the viewing window)
Power type 24 AC and PoE (IEEE 802.3at)
Power consumption Maximum: 19.7 W; typical: 7.2 W
Operating temperature –40°C to +60°C
Operating humidity 5% to 95% (non-condensing)
Surge protection 6 kV
IP rating IP66
IK rating IK10 (except for the viewing window)
Net weight 3.23 kg
Gross weight 3.73 kg
Device dimensions 158 mm x 333 mm x 224 mm
Package dimensions 220 mm x 385 mm x 285 mm
