Brand：Honeywell
Model:HICC-2600TVI
Lens:2.8~12mm

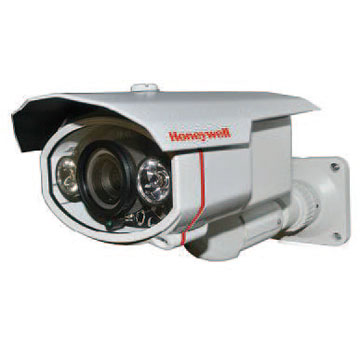

HICC-2600TVI Honeywell 1080P HD Network IR Bullet Camera
Honeywell HICC-2600TVI HD Network IR Bullet Camera, it combines
with the world-class imaging technology and cameras and innovation of
IP network technology,it provides users with 1080P high quality images.
The high quality image effect of HICC-2600TVI HD Network IR Bullet
Camera makes it the ideal solution in the field of advanced monitoring.
Built-in 2.8-12mm variable focus auto aperture lens, it allows users
to adjust the lens to the best angle according to site monitoring
environment. Built-in two array IR light of HICC-2600TVI can make the
IR distance up to 30~40 meters, it can provide users with a clear black
and white picture under the environment of low illumination or being all
black.
HICC-2600TVI support PoE Ethernet (IEEE802.3af), it can directly
power the network camera by the netwire,thus help the user save the
use of the power adapter, and effectively reduce the installation cost.
In order to increase the installation flexibility of HICC - 2600TVI, this
network camera also supports DC12V and AC24V power supply.
Market Opportunities
Honeywell HICC-2600TVI support 1080P HD video, H.265 efficient
compression,POE Ethernet power supply and ONVIF network
interface, it still can present UHD picture, even in a limited bandwidth
environment.Box appearance design makes it the ideal choice all kinds
of security, monitoring application, and widely used in all kinds of indoor
and outdoor venues, such as road, airports, schools, shopping malls,
hotels, and bank branches, enterprises and organs, retail stores, building
corridor, etc.
? 1080P high resolution
? H.264/H.265/MJPEG three kinds of Encoding mode,Dual-encoders, ROI encoding
? Mechanical switch, Real Day/Night switch
? H.265 efficient compression, saves bandwidth and storage
? WDR, 3DNR, DC IRIS, Anti-flicker, Defogging, corridor mode
? Comprehensive I/O ports: audio in, audio out, video out,alarm in, alarm out, RJ45, reset button, RS485, support TF card
? Built in Power over Ethernet (PoE); 10/100M adaptive ethernet
? Event triggering – Video tampering, Motion detection,Network fault, Alarm Input
? Intelligent analysis:Target Count,Object Detection,AreaD e t e c t i o n ,V i r t u a l G u a r d , Face Detect ,Video
Diagnose(Color cast,Image blur,Image bright, Imagedark,Video lost)
? Event trigger action – SNAP, Record video in TF, send to FTP, send to Email, Alarm out linkage, preset linkage,upload to alarm center
? Built-in IR light, the IR distance is 30~40 meters
? Mobile storage capacity increased to 64GB
? Compatible with Honeywell Universal Surveillance (HUS)Platform and NVR system
? ONVIF Profile S compliant; IP66
SPECIFICATIONS
Model HICC-2600TVI
Image Device 1/2.8" 2.07MP low illumination CMOS
Effective Pixels 1920×1080
Lens Interface 2.8~12mm 3MP Ф14
Iris DC Iris
ICR Mechanical switch, Real Day/Night switch
Min. Illumination
IR led on: 0Lux
IR led off: Color: 0.02Lux/F1.4[AGC ON]
B/W: 0.002Lux/F1.4[AGC ON]
S/N Ratio 52dB
IR Beam distance 30~40 meters
Network Video
Resolution 1920×1080 25/30 FPS
Video Encoding H.264/H.265/MJPEG, Dual-encoders
Profile Setting Every video profile has Independent CBR/VBR/GOP/Frame rate setting
ROI Encoding 4 zone can be set
Electronic Shutter Auto/Manual: 1/30(1/25)~1/10000
Iris Exposure Control Auto
AGC Low/Mid-Low/Mid/Mid-High/High
TWDR Off /Low/Mid/High
3DNR Off /Low/Mid/Mid-High/HIGH
Color Mode Normal/Nature/Bright
Mirror Off/ Horizontal Mirror/ Vertical Mirror/ 180° Rotation/ 90° Rotation/ 270° Rotation
Defogging Off /Low/ Mid/ High
Image Setting
Exposure Control, 3DNR, TWDR, Color, brightness, sharpness, contrast, Hue, Mirror; Privacy Masks, title, time and date
overlay, 16:9 corridor mode, ROI(Region of Interest)
Streaming
Simultaneously multi-profile streaming, Streaming over UDP, TCP, HTTP, or HTTPS, M-JPEG streaming over HTTP
(server push), Controllable frame rate and bandwidth, Constant and variable bit rate (MJPEG/H.264/H.265)
On Screen Display title, time and date overlay
Audio
Audio Encoder G.711u
Audio Streaming One-way or two-way
Audio Input Line In
Audio Output Line Out
Network
Supported Protocols IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP,
SNMP
Security Password protection, HTTPS encrypted data transmission, user access log
Users 4 simultaneous unicast users
Ethernet 10/100M adaptive
System Integration
Supported Interface ONVIF Profile S
Event Detection Alarm in, motion detection, Network fault, Video tampering
Motion Detection multi-zone video motion detection with Sensitivity options
Privacy Mask 4-Zone
Video Tampering Video Cover or Mask
Intelligent analysis
Target Count,Object Detection,Area Detection,Virtual Guard, Face Detect, Video Diagnose(Color cast,Image blur,Image
bright, Image dark,Video lost)
Events Action SNAP, Record video in TF, send to FTP, send to Email, Alarm out linkage, preset linkage, upload to alarm center
General
OS Windows XP or later
Browser IE 8.0 or later
Supported Platform Honeywell Universal Surveillance (HUS) and NVR system
Power Supply DC12V/AC24V ±10% external power adapter
PoE Support
Power consumption Max 10W
Connectors
RJ-45, 1 power jack, 2 alarm input and 1 output, Audio out, Audio input, Video out, Reset button, RS485, Support TF
card
Operating Temperature -20° C ~ 55° C
Operating Humidity 0% ~90% (non-condensing)

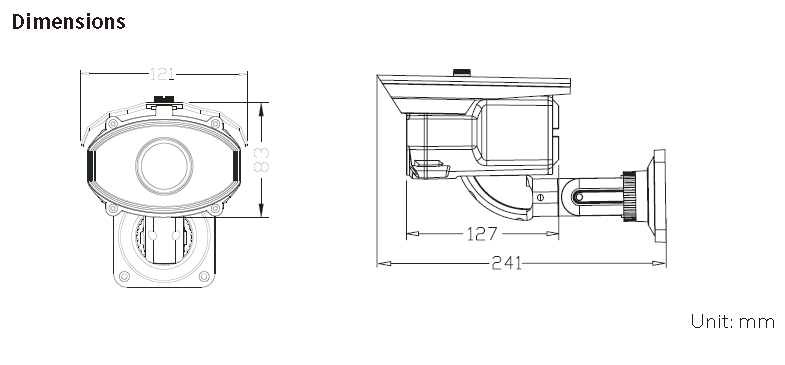

Dimensions 241mm×121mm×134mm
Certificate CE, FCC
Protection level IP66
HICC-2600TVI
1080P HD Network IR Bullet Camera, H.265 efficient compression, Real Day/Night switch, TWDR, ONVIF Profile S,
Support 64G TF Card, Build-in VA, PoE, DC12V/AC24V
