Brand:AXIS
Model:AXIS T8604
5027-049

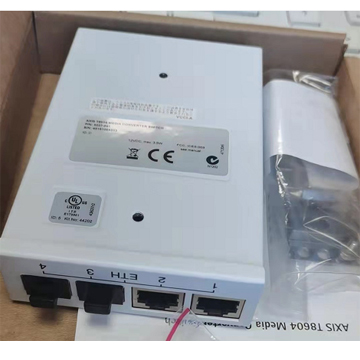

AXIS T8604 MEDIA CONVERTER SWITCH
5027-049
Four port media converter switch with 2 RJ45 ports and 2 SFP slots for optical
fiber connection (SFP modules not inluded). Shelf or DIN-rail mount.
Temp spec: -40°C to +75°C (-40°F to 167°F). 2,719
Converts Ethernet to fiber 12 V DC
Convert Ethernet to optical fiber
Compatible with Axis network video products
Support for 10/100 Mbps
Reliable configuration
Two SFP slots and two RJ-45 ports
The media converter switch can be connected in a daisy chain network. The maximum number of cameras that can be connected in the daisy chain depends on the generated bit rate per camera. The limitations are the 100 Mbit link between camera and media converter switch, and the 1000 Mbit link between the media converter switches. AXIS T8604 does not feature IGMP Snooping.
Fiber optic connections are typically used in city surveillance, airports and other long distance installations, where lighting strikes are a threat or great connection distances are required. Surveillance integrators in the field can also connect installation monitors and laptops to AXIS T8604 for camera maintenance and control.
The media converter switch is compatible with all Axis network video products. An Axis camera/encoder connects to AXIS T8604 via RJ-45, and the two SFP slots give installers the flexibility to connect the cameras cost-effectively to the network over long distances. The RJ-45 connectors can also be used for connection to complementary cameras or temporarily to a laptop to service the system locally.
Cables & connectors
RJ45 Field Connector
RJ45 Field Connector
For quick and easy cable termination
Housings & cabinets
AXIS T98A15-VE Media Converter Cabinet A
AXIS T98A15-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
AXIS T98A16-VE Media Converter Cabinet A
AXIS T98A16-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
AXIS T98A17-VE Media Converter Cabinet A
AXIS T98A17-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
AXIS T98A18-VE Media Converter Cabinet A
AXIS T98A18-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
AXIS T98A19-VE Media Converter Cabinet A
AXIS T98A19-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installationt
Media converters
AXIS T98A15-VE Media Converter Cabinet A
AXIS T98A15-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
AXIS T98A16-VE Media Converter Cabinet A
AXIS T98A16-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
AXIS T98A17-VE Media Converter Cabinet A
AXIS T98A17-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
AXIS T98A18-VE Media Converter Cabinet A
AXIS T98A18-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
AXIS T98A19-VE Media Converter Cabinet A
AXIS T98A19-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installationt
AXIS T8611 SFP Module LC.LX
AXIS T8611 SFP Module LC.LX
Single-mode fiber module for up to 10 km transmission range
Recommended for this product
AXIS T8612 SFP Module LC.SX
AXIS T8612 SFP Module LC.SX
Multi-mode fiber module for up to 550 m transmission range
Recommended for this product
AXIS T8613 SFP Module 1000BASE-T
AXIS T8613 SFP Module 1000BASE-T
Ethernet module for expansion of network ports
Recommended for this product
Mounts
AXIS T91A03 DIN Rail Clip A (5 pcs), viewed from its front
AXIS T91A03 DIN Rail Clip A
Standard DIN mounting clip
Recommended for this product
Power
AXIS T8061 Ethernet Surge Protector
AXIS T8061 Ethernet Surge Protector
Protects outdoor devices from power surges
Recommended for this product
AXIS T8127 60W Splitter 12/24V DC
AXIS T8127 60 W Splitter 12/24 V DC
For 12 or 24 V DC installations
Recommended for this product
AXIS TU8001 Ethernet Surge Protector
AXIS TU8001 Ethernet Surge Protector
For use indoors or in an enclosure
Recommended for this product
Power adapters
AXIS T8006 PS12
AXIS T8006 PS12
Versatile 12 V DC power supply
Recommended for this product
Power Supply DIN CP-D 12/2.1 25 W
Power Supply DIN CP-D 12/2.1 25 W
A DIN power supply to power cameras and media converters
Recommended for this product
AXIS T8604 Media Converter Switch CN
5027-049
AXIS T8604 Media Converter Switch AR, AU, BR, EU, JP, KR, UK, US
5027-041
