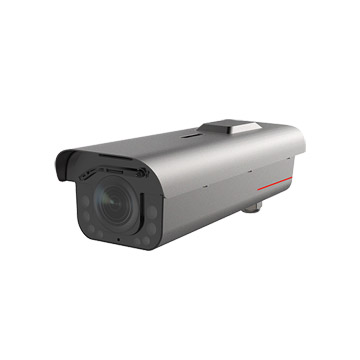

X2391-EPL 4T 9MP Softlight Integrated ITS Camera
4 TOPS computing power
Supports heat map, vehicle recognition, and traffic flow statistics
Supports backlight adaptation, overcast adaptation, and speed adaptation
1" CMOS sensor
Online loading and upgrade of algorithms
Super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
CPU Hi3559A V100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash type SPI NAND Flash 512.0 MB
Max resolution 4K: 3840 (H) x 2160 (V)
Sensor size 1"
Min illumination Color: 0.0005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0001 lux (F1.2, AGC ON, 1/30s shutter speed)
Focal length 11–40 mm
Angle of view Horizontal: 21.1° (T) to 65.1° (W); vertical: 11.2° (T) to 34.9° (W)
Illumination distance 30 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map Supported
ePolice Passing vehicle snapshot ,Unsafe lane change,Road marking violation ,Bus lane violation ,Wrong-way driving ,Vehicle running-red-light ,Traffic light detector ,Traffic light recognition ,Speeding/Low-speed
Checkpoint Passing vehicle snapshot ,Wrong-way driving ,Speeding/Low-speed ,Hands-free device violation ,Seat belt violation (driver),Vehicle statistics
Vehicle License plate image enhancement
Traffic flow statistics Motor vehicle,Non-motorized vehicle,Pedestrian
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M/1000M adaptive Ethernet port
Optical port One SFP slot
Power type 100–240 V AC
Power consumption Maximum: 55 W, typical: 18 W
Operating temperature –40°C to +60°C
Operating humidity 5% to 95% (non-condensing)
IP rating IP66
IK rating IK10
Power type 100–240 V AC
Power consumption Maximum: 55 W, typical: 18 W
Operating temperature –40°C to +60°C
Operating humidity 5% to 95% (non-condensing)
Self-cleaning viewing window Supported
Self-cleaning viewing window specification 1. Single AR+AF coating 2. Transmittance: Tmin ≥ 90%, Tave ≥ 91%@400–420 nm&900–950 nm; Tmin ≥ 91%, Tave ≥ 92%@400–420 nm 3. Hardness: > 5 HV 4. Contact angle: ≥ 110° (before the friction test) or 90° (after the friction test) 5. Salt spray test: 10 days; service life: 5 years
Surge protection 6 kV
IP rating IP66
IK rating IK10
Net weight 6.6 kg
Gross weight 8.6 kg
Device dimensions 159 mm x 516 mm x 215.6 mm
Package dimensions 325 mm x 678 mm x 329 mm
